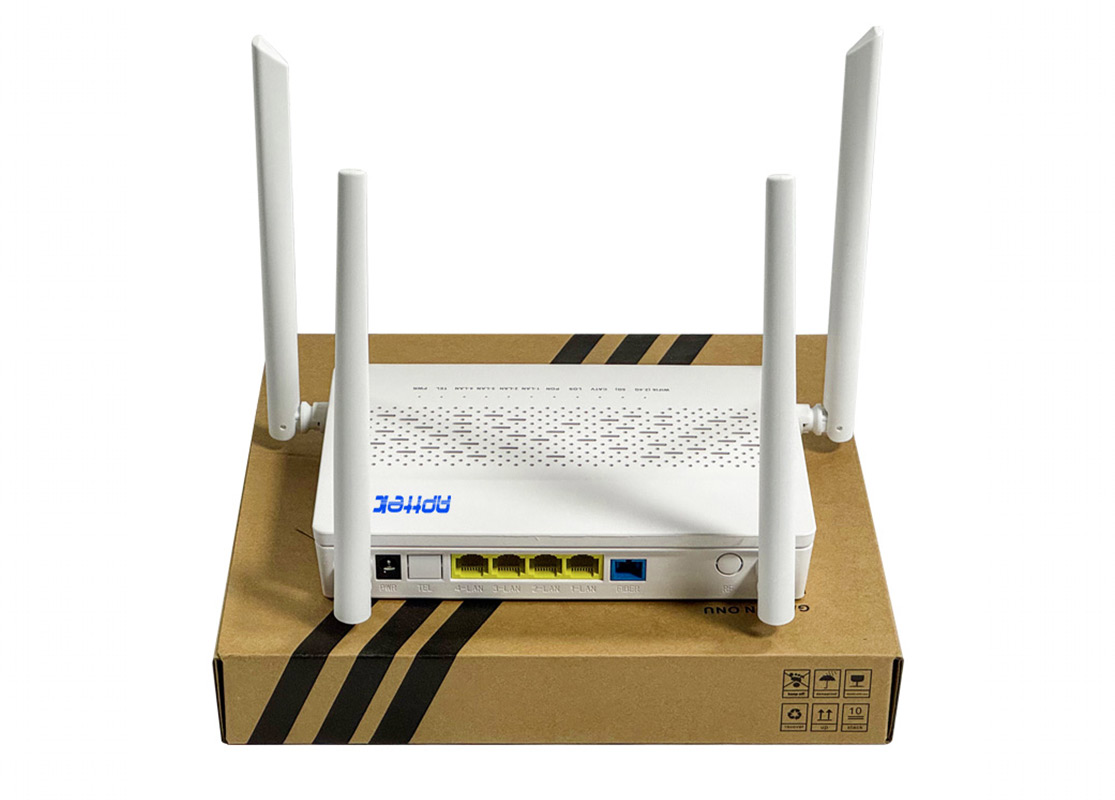

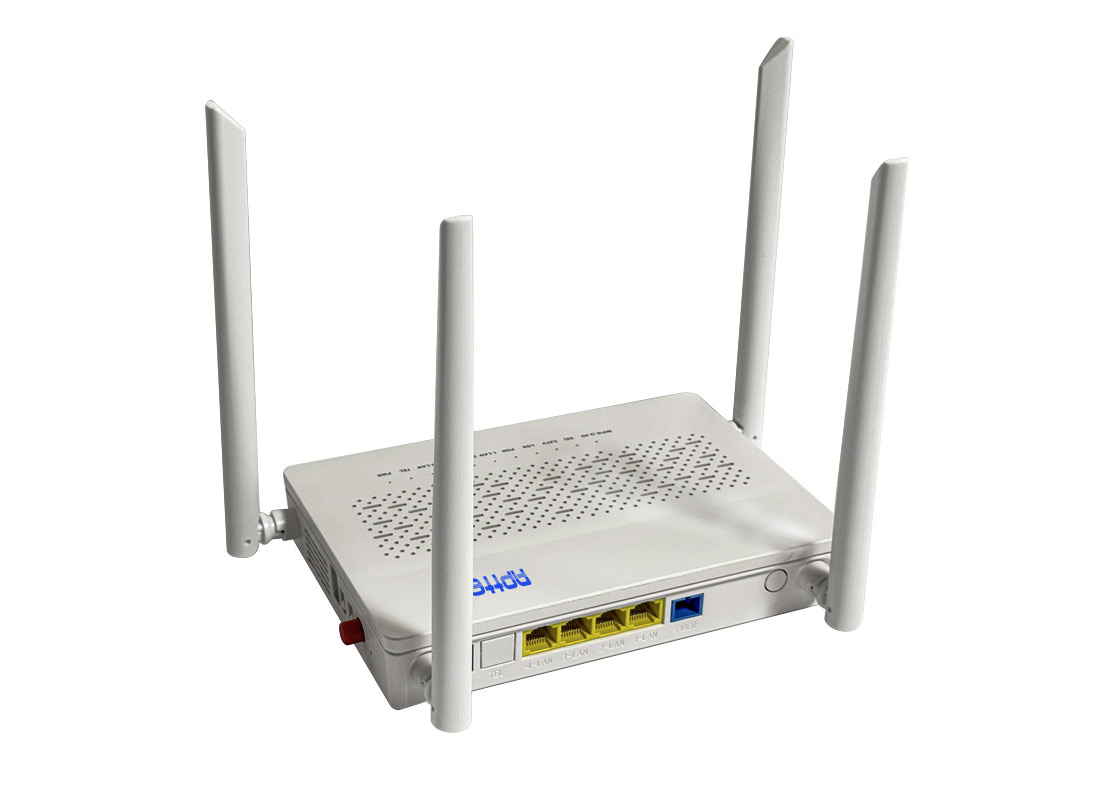

ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,ONU is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON REALTEK chipset and has high reliability， easy management，flexible configuration，robustness，good quality service guarantee(Qos).

This ONU supports WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac) concurrently ,a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.

ONU supports the G/E PON switching function automatically

△ comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol

△ support downlink 2.488 Gbits/s rate and uplink 1.244 Gbits/s rate

△ support bidirectional FEC and RS(255,239) FEC CODEC

△ support 32 TCONT and 32 GEMPORT

△ support AES128 decryption function of G.984 standard

△ support SBA and DBA dynamically broadband allocation

△ support the PLOAM function of G.984 standard

△ support Dying-Gasp check and report

△ support synchronous Ethernet
△ good interworking with the OLT from different manufacturers，such as HuaWei ,ZTE,Cortina etc

△ down-link LAN ports: 4*10/100/1000M with auto-negotiation

△ support the rogue ONU alarm function

△ Support VLAN function

△ operation mode: HGU

△ support IEEE802.11b/g/n and IEEE802.11ac standard for WIFI

△ antennas gain: 5DBi with external

△ support: 300Mbps PHY rate IEEE802.11n, 866Mbps PHY rate IEEE802.11ac

△ support multiply SSID

△ Multiple encryption methods:WFA、WPA、WPA2、WAPI

△ comply fully with IEEE802.3ah standard and CTC-3.0 specification

Tech parameters	description
Up-link interface (XPON use the GPON spec)	1 GPON interface，SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type：SC/APC Optical power：0~4 dBm Sensitivity：-28 dBm safety: ONU authentication mechanism
Wavelength(nm)	TX 1310nm，RX 1490nm
Fiber connector	SC/UPC or SC/APC connector
Down-link data interface	410/100/1000M auto-negotiation Ethernet* interface, RJ45 interface

Indicator LED	11 pcs，refer to NO.6 definition of indicator LED
DC supply interface	input＋12V 1A，footprint：DC0005 ?2.1MM
Power	≤7W
Operating temperature	-5～+55℃
Humidity	10～85%（non-condensation）
Storage temperature	-30～+70℃
Dimension（MM）	*18512532mm（mainframe）*
Weight	0.5Kg（mainframe）

WIFI characteristics

Tech features

description

antenna

2T2R Mode; gain:5dBi

rate

300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5

encryption methods

WFA、WPA、WPA2、WAPI

Tx power

17dBm for 2.4GHz ;19dBm for 5GHz

Rx sensitivity

WIFI4：-59dBm @ channel 11 MCS7; WIFI5：-50dBm @ channel 155 AC80;

WPS function

Support

Ordering information

Item name	Mode NO.	Suffix of Mode NO.
ONU:4LAN+2WIFI	XPON	4GE-2.4G&5GWIFI

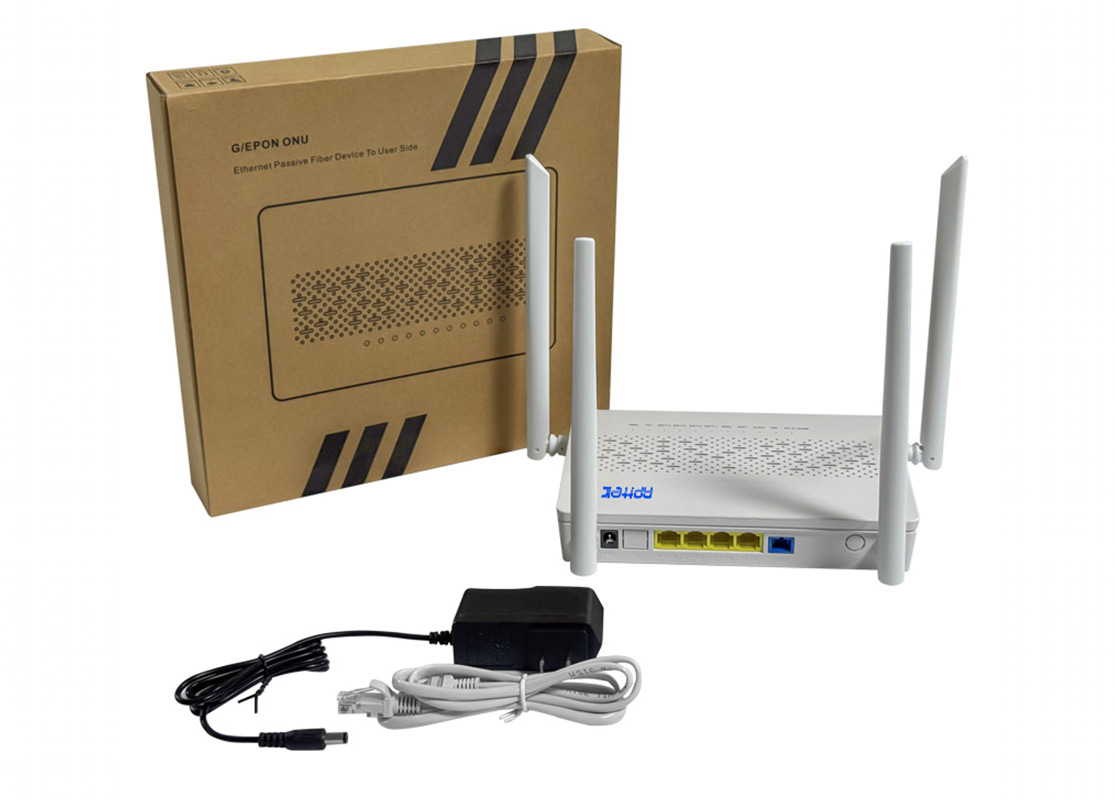

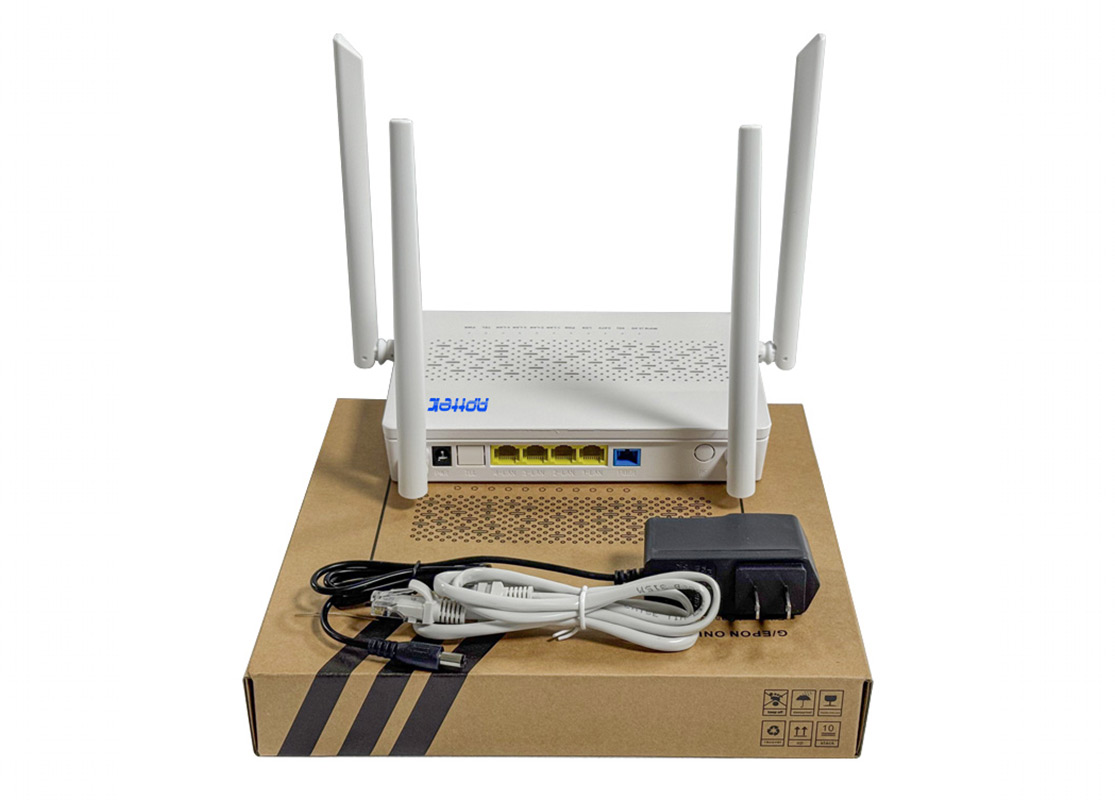

Packing list

Name	Quantity	Unit
XPON ONU	1	pcs
supply power	1	pcs
Manual & warranty card	1	pcs

Tech features	description
antenna	2T2R Mode; gain:5dBi
rate	300Mbps IEEE802.11n 866 Mbps IEEE802.11ac The number of channel :13 for wifi4;12 for wifi5
encryption methods	WFA、WPA、WPA2、WAPI
Tx power	17dBm for 2.4GHz ;19dBm for 5GHz
Rx sensitivity	WIFI4：-59dBm @ channel 11 MCS7; WIFI5：-50dBm @ channel 155 AC80;
WPS function	Support
